From Card Swipe to Cash: How ATM Transaction Processing Actually Works

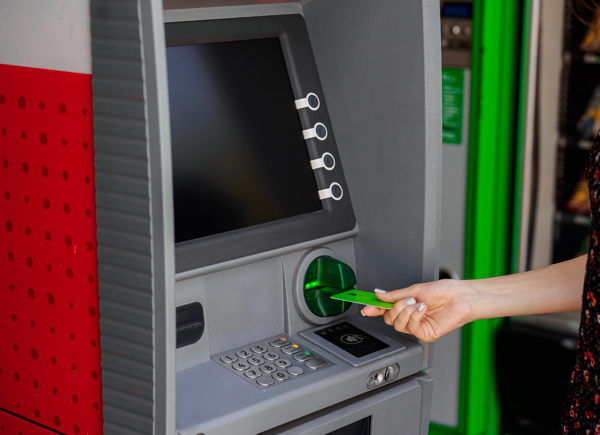

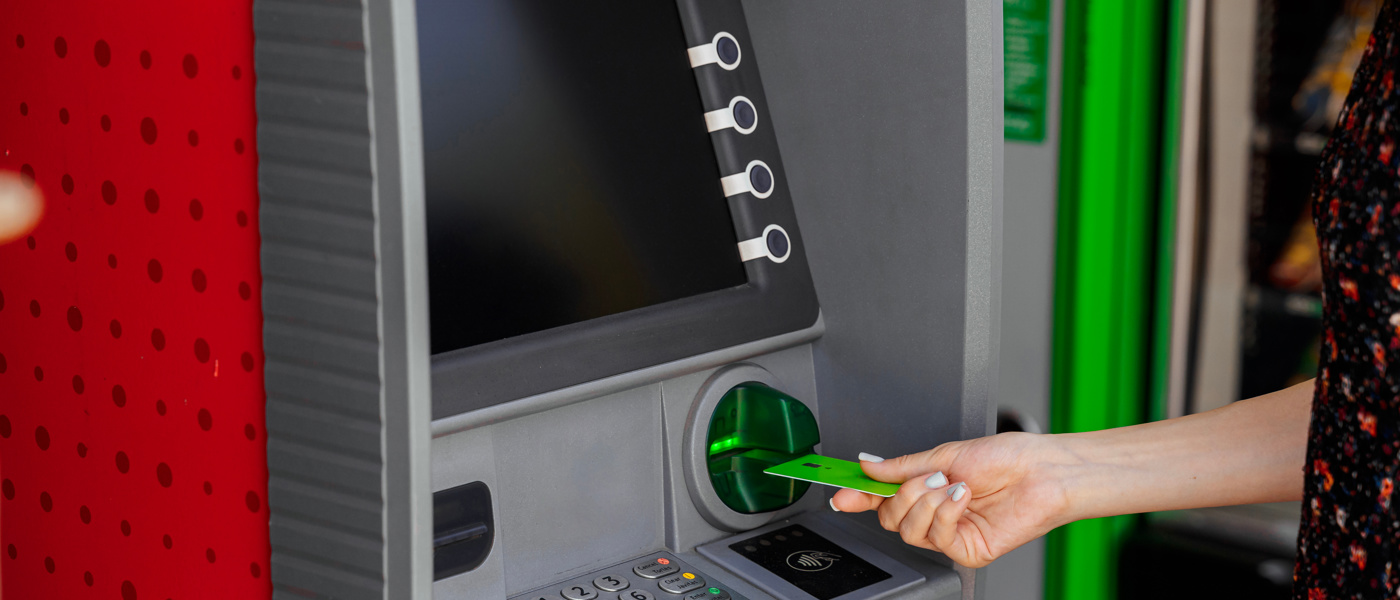

We all know the routine. You approach an ATM, insert your card, grab your cash, and continue your day. But do you know what's happening behind the scenes?
When you insert your card into an ATM, the device itself doesn't determine whether cash should be dispensed. Instead, it must communicate with a broader ecosystem that validates the card, verifies available funds, and determines whether the transaction can be approved.
When ATMs were first introduced more than 50 years ago, they largely operated as closed-loop systems. A bank's ATM typically served only that bank's customers, with transactions processed entirely within the institution's own network.
With the emergence of shared ATM networks, payment networks, and transaction processors, financial institutions gained the ability to securely exchange transaction data and authorize withdrawals across organizational boundaries.
The result was interoperability, which is when a card issued by one financial institution can be used at an ATM owned by another bank or operator anywhere in the world.
Every ATM withdrawal today depends on a transaction processor that routes authorization requests between the ATM owner, payment network, and card issuer in a matter of seconds, creating the seamless experience users have come to expect.
The ATM transaction processor is the software platform that receives transactions, routes them to the card issuer, receives responses from the issuer, helps facilitate settlement, and manages communication between participants.
The processor contains multiple components, including the “switch,” which determines where your transaction needs to go.
An ATM processor has to figure out where the funds for a transaction need to be routed. It does that using information from your debit card, including the bank identification number (BIN) that identifies the issuing institution.
This is where interoperability comes into play. Using the information from your card, the processor can determine where your transaction needs to be routed for authorization. The processor is no longer limited to processing transactions for a single institution because it can read the BIN assigned to the card and route accordingly.
For ATM interoperability to happen, several entities must be brought together, including the following key players.
The payment network creates connectivity between issuers and acquirers. It ensures that all participants can communicate and transact with one another.
The acquirer is the owner or operator of the ATM or point-of-sale (POS) system that originates the transaction. Historically, a financial institution acted as the card issuer and acquirer. However, today it can be a company such as Brink’s that participates through arrangements with sponsoring financial institutions.
The issuer is the organization that maintains the account relationship with the cardholder and provides access to the ATM. A regional bank might own or operate a limited ATM footprint, but by participating in payment networks, it can effectively act as an issuer that provides its customers with availability to a much broader network of ATMs.
The core banking platform acts as a ledger that tracks all of the activity for each account, including withdrawals and deposits. When the ATM transaction reaches the issuer, the core banking platform is one of the systems used to determine whether that transaction should be authorized or rejected.
Here’s a quick walkthrough of the ATM process:
The cardholder presents a credential (physical card or mobile wallet) at the ATM.
The ATM captures the transaction request and sends it to the processor.
The processor determines which payment network receives the transaction.
The payment network routes it to the correct issuer.
The issuer evaluates the request (via its core banking platform) and approves or declines it.
The response travels back through the same path to the ATM, in reverse order.
If approved, the ATM dispenses cash and a receipt.
Settlement occurs and funds are moved between issuer and acquirer.
Remember how interoperability enables a cardholder to access ATMs all over the world? Well, that creates a bit of a twist on the normal journey of an ATM transaction. Here’s a real-world example of transaction processing flexibility in action.
Imagine you’re on vacation in a foreign country standing in front of a local ATM with your debit card in your hand. Your account is in U.S. dollars, but you will be issued local currency. This used to mean attempting to do cash conversion math in your head.
Now, dynamic currency conversion (DCC) does the work for you.
DCC enables the ATM to show you the exchange rate and any markup or fees, so you know what that transaction will cost in your home currency before you approve it. It’s not just a consumer feature; DCC is an illustration of ATM transaction processing interoperability.
Once you understand the core ATM components, the entire ATM ecosystem starts to make a lot more sense.
Acquirers support transaction acceptance at the ATM. Issuers provide the payment credentials. Payment networks connect everything together. Transaction processors move the data. And core banking platforms make the authorization decisions.
Every ATM transaction is the result of each of those systems working together to process your request in real time. Remember that the next time you need to make a quick bank run.
